1.2 Adding new variables (The Result) 1.2 Adding new variables (The Result)

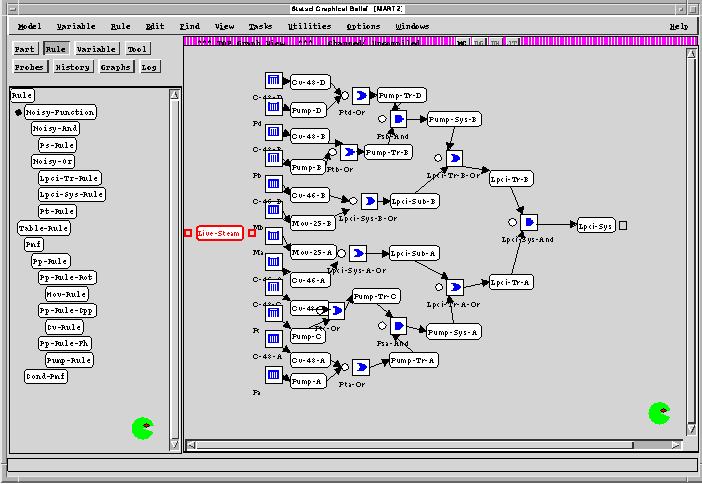

Figure 3. Model after adding "Live-Steam" variable. Square boxes on the side of variable node are handles for connection to rules.
Figure 3 shows the model after adding the "Live-Steam" variable. The square boxes on the side of the variable node are handles for connecting the variable to a rule. The one on the left is for the input rule which defines the distribution of "Live-Steam" the one on the right is for the output to other rules which are conditioned on these variables. Our next step is to create these rules.
Continue with
the example and create a rule which
describes the probability of live steam in this example.
Model Construction. Go back to the
begining of the model construction example.
Return to
the main example page.
